Overview

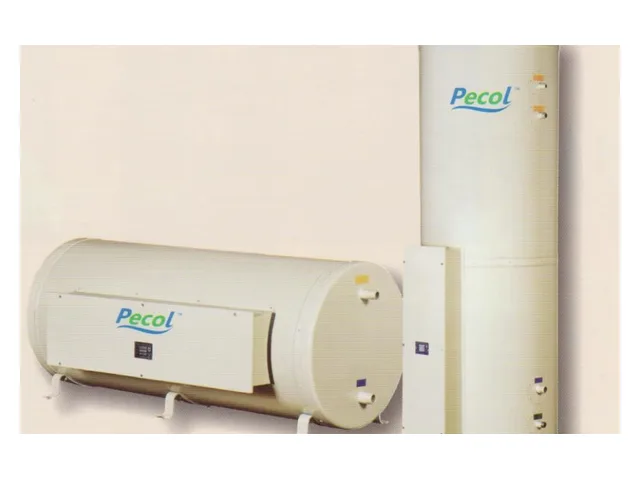

Insulated storage tank that meets peak hot water demand and keeps the heat pump running efficiently. The PACHM Commercial Calorifier is part of Pecol's Commercial Heat Pumps range (calorifiers). Size range: 454 – 9,080 L.
Models: PACHM100 to PACHM2000
All details on this page come from the Pecol commercial heat pump brochure. Download the Commercial heat pump brochure (PDF) for drawings and installation notes.
Key features
Meets peak demand
Lets the system meet periods of high peak hot water demand.
Temperature stratification
Keeps hot water layered, which the heat pump needs to run efficiently.
Prevents short cycling
A properly sized tank with the right thermostat differential stops the heat pump switching on and off too often.
Built-in circulation
Water moves between the tank and heat pump through the built-in Pecol circulating pump.
Technical specifications
| Model | Capacity, litre (gal) | Outer container (mm) | Empty weight (kg) | Loaded weight (kg) |
|---|---|---|---|---|
| PACHM100 | 454 (100) | Ø700 × 1700 | 142 | 597 |
| PACHM200 | 908 (200) | Ø1000 × 1800 | 256 | 1,165 |
| PACHM300 | 1,362 (300) | Ø1000 × 2500 | 331 | 1,695 |
| PACHM400 | 1,816 (400) | Ø1400 × 1900 | 408 | 2,226 |
| PACHM500 | 2,270 (500) | Ø1400 × 2300 | 464 | 2,736 |
| PACHM600 | 2,724 (600) | Ø1400 × 2700 | 531 | 3,258 |
| PACHM700 | 3,178 (700) | Ø1700 × 2000 | 602 | 3,784 |
| PACHM800 | 3,632 (800) | Ø1700 × 2400 | 649 | 4,285 |
| PACHM900 | 4,086 (900) | Ø1700 × 2600 | 696 | 4,787 |
| PACHM1000 | 4,540 (1000) | Ø1700 × 2800 | 753 | 5,298 |
| PACHM1200 | 5,448 (1200) | Ø2000 × 2500 | 1,130 | 6,585 |
| PACHM1500 | 6,810 (1500) | Ø2000 × 3000 | 1,270 | 8,088 |
| PACHM2000 | 9,080 (2000) | Ø2000 × 3800 | 1,951 | 11,042 |
Special capacities and dimensions can be made to order.
Specifications are from the manufacturer's brochure and may change without notice. Please confirm with our engineers before ordering.
Where it is used
- Hotels and serviced apartments
- Hospitals and nursing homes
- Factories, hostels and sports complexes
PACHM Commercial Calorifier price and quotation
Prices depend on the size, installation and site conditions, so we quote each project individually. Tell us how many people or rooms you need hot water for, and our engineers will recommend the right model and send you a free quotation.
