Overview

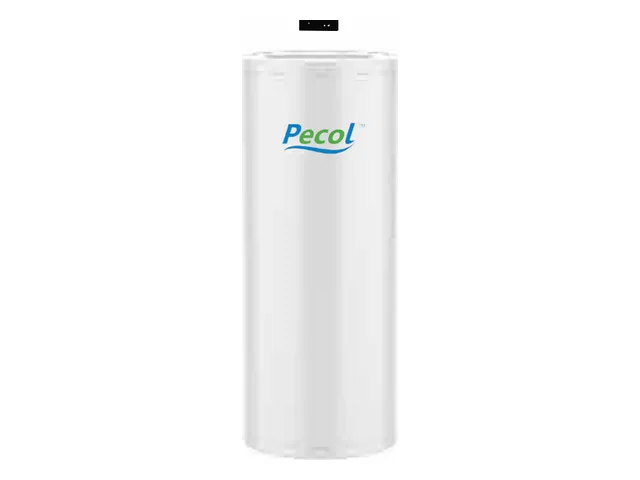

Slim wall-mounted heat pump water heater with an intelligent external controller. The Vertical Wall-Mounted Heat Pump is part of Pecol's Domestic All-in-One Heat Pump range (wall-mounted heat pump water heaters). Size range: 60 / 80 / 100 L.
All details on this page come from the Pecol domestic heat pump brochure. Download the Domestic heat pump brochure (PDF) for drawings and installation notes.
Key features
Intelligent external controller
Fashionable, simple and exquisite controller for the wall.
Higher energy efficiency
Built-in electronic expansion valve for precise refrigerant flow and temperature control.
Silent operation
Sealed cabin with sound insulation board and an optimised noise-reduction design.
Durable
Dedicated brand compressor, high efficiency and long life, with a 6-year warranty.
Technical specifications
| Parameter | 60 L | 80 L | 100 L |
|---|---|---|---|
| Rated voltage / frequency | 220V~/50Hz | 220V~/50Hz | 220V~/50Hz |
| Rated heating capacity | 750 W | 750 W | 750 W |
| Rated input power | 220 W | 220 W | 220 W |
| Electric element rated power | 2,000 W | 2,000 W | 2,000 W |
| Max. input power | 2,450 W | 2,450 W | 2,450 W |
| COP | 3.4 | 3.4 | 3.4 |
| Max. input current | 12 A | 12 A | 12 A |
| Inlet / outlet | G1/2" | G1/2" | G1/2" |
| Net weight | 60 kg | 65 kg | 72 kg |
| Refrigerant | R134a | R134a | R134a |
| Overall size (mm) | Ø470 × 1000 | Ø470 × 1168 | Ø470 × 1330 |
| Noise level | 40 dB(A) | 40 dB(A) | 40 dB(A) |
Specifications are from the manufacturer's brochure and may change without notice. Please confirm with our engineers before ordering.
Where it is used
- Condominiums and apartments
- Replacing an old electric storage heater on the wall
- Couples and small families
Vertical Wall-Mounted Heat Pump price and quotation
Prices depend on the size, installation and site conditions, so we quote each project individually. Tell us how many people or rooms you need hot water for, and our engineers will recommend the right model and send you a free quotation.
