Overview

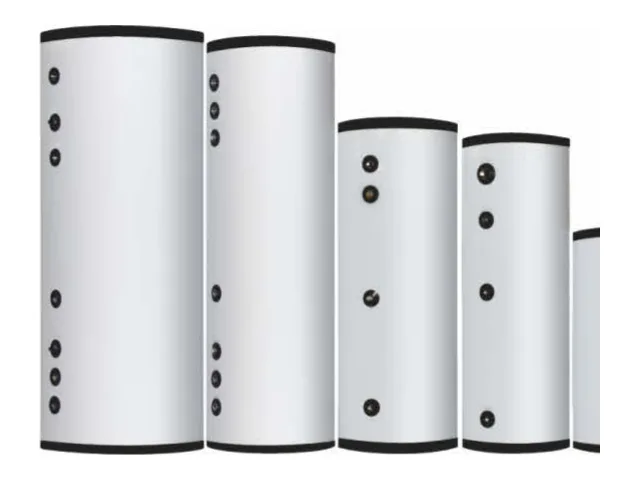

SUS304 buffer or domestic hot water tanks with optional coil for solar or gas boiler. The IPWT Heat Pump Buffer / Hot Water Tanks is part of Pecol's Storage Water Heaters range (stainless steel tanks for heat pump & solar systems). Size range: 30 – 1,000 L.
Models: IPWT 30 to IPWT 1000
All details on this page come from the Pecol air to water heat pump brochure. Download the Air to water heat pump brochure (PDF) for drawings and installation notes.
Key features
Buffer or domestic hot water
Use as a system buffer or a hot water storage tank.

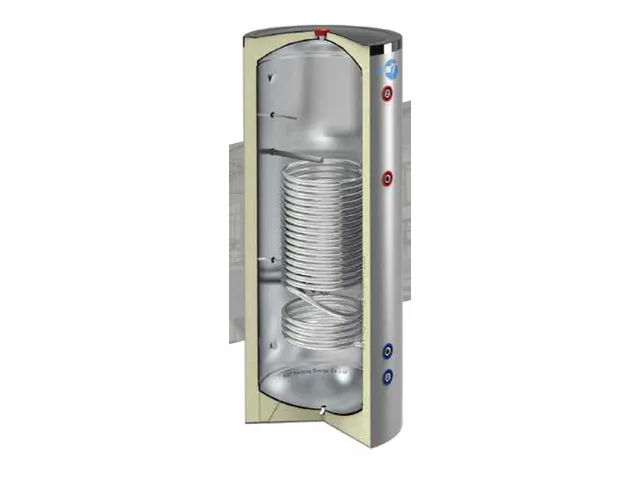

Optional heating coil
Heat exchanger coil for a solar heating system or gas boiler.
Optional accessories
Electric heater, air vent valve, safety valve, pressure gauge and water refill valve.
Custom sizes
Tank diameter, height and connections can be customised.
Technical specifications
| Model | IPWT 30 | IPWT 50 | IPWT 60 | IPWT 80 | IPWT 100 | IPWT 120 | IPWT 150 | IPWT 180 |
|---|---|---|---|---|---|---|---|---|
| Capacity | 30 L | 50 L | 60 L | 80 L | 100 L | 120 L | 150 L | 180 L |
| Inner / outer diameter | Ø370 / Ø470 mm | |||||||
| Inner tank | SUS304, 1.2 mm | |||||||
| Circulation connection | G1.25" × 4 | G1.25" × 4 | G1.25" × 4 | G1.25" × 4 | G1.5" × 4 | G1.5" × 4 | G1.5" × 4 | G1.5" × 4 |
| Unit size (mm) | 470 × 370 | 470 × 560 | 470 × 650 | 470 × 840 | 470 × 1020 | 470 × 1210 | 470 × 1470 | 470 × 1750 |
| Model | IPWT 200 | IPWT 250 | IPWT 300 | IPWT 400 | IPWT 500 | IPWT 600 | IPWT 700 | IPWT 800 | IPWT 900 | IPWT 1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Inner diameter (mm) | 440 | 470 | 470 | 550 | 600 | 650 | 700 | 750 | 800 | 850 |
| Outer diameter (mm) | 540 | 570 | 570 | 650 | 700 | 750 | 800 | 850 | 900 | 950 |
| Inner tank | SUS304, 1.5 mm | SUS304, 1.5 mm | SUS304, 1.5 mm | SUS304, 2.0 mm | SUS304, 2.0 mm | SUS304, 2.0 mm | SUS304, 2.0 mm | SUS304, 2.5 mm | SUS304, 2.5 mm | SUS304, 2.5 mm |
| Circulation connection | G1.5" × 4 | G1.5" × 4 | G2" × 4 | G2" × 4 | G2" × 4 | G1.5" × 8 | G1.5" × 8 | G2" × 8 | G2" × 8 | G2" × 8 |
| Unit size (mm) | 540 × 1500 | 570 × 1560 | 570 × 1840 | 650 × 1890 | 700 × 1890 | 750 × 2000 | 800 × 2000 | 850 × 2000 | 900 × 2000 | 950 × 2000 |
All IPWT tanks: working pressure max. 6 bar, working temperature max. 90°C, painted galvanised steel outer tank, 50 mm high-density polyurethane insulation.
Specifications are from the manufacturer's brochure and may change without notice. Please confirm with our engineers before ordering.
Where it is used
- Air to water heat pump systems
- Solar and gas boiler systems with the optional coil
- Homes, hotels and commercial buildings
IPWT Heat Pump Buffer / Hot Water Tanks price and quotation
Prices depend on the size, installation and site conditions, so we quote each project individually. Tell us how many people or rooms you need hot water for, and our engineers will recommend the right model and send you a free quotation.
