Overview

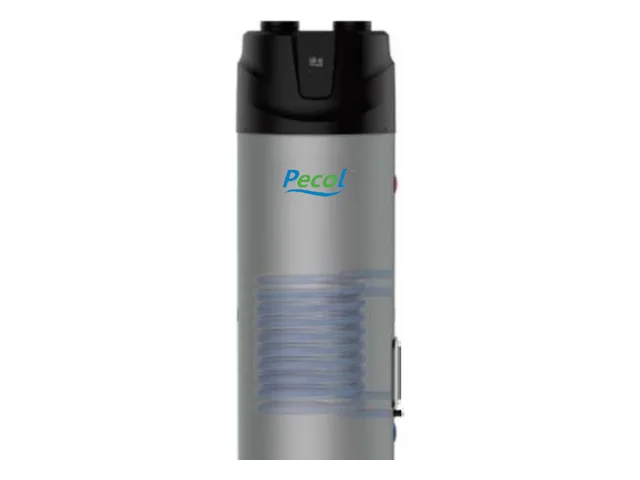

R290 all-in-one heat pump with a DC variable-speed fan and air in/out at the top. The European Model is part of Pecol's Domestic All-in-One Heat Pump range (all-in-one heat pump water heaters). Size range: 200 / 250 / 300 L.
All details on this page come from the Pecol domestic heat pump brochure. Download the Domestic heat pump brochure (PDF) for drawings and installation notes.
Key features
Enamelled inner tank
Tested with 280,000 pressure pulses: no leakage, no scaling, corrosion resistant, for clean and healthy water.
Dedicated brand compressor
Higher heating efficiency, so hot water is ready without waiting.
Refrigerant R290
New upgrade with high energy efficiency, using 150 g of R290 refrigerant.
DC variable-speed fan
Intelligent temperature control, more comfortable and more eco-friendly.
Air in and out at the top
Suitable for many kinds of installation.
Technical specifications
| Parameter | 200 L | 250 L | 300 L |
|---|---|---|---|
| Rated voltage / frequency | 220V~/50Hz | 220V~/50Hz | 220V~/50Hz |
| Rated heating capacity | 1,500 W | 1,500 W | 1,500 W |
| Hot water per hour | 35 L/h | 35 L/h | 35 L/h |
| Max. input power | 3,100 W | 3,100 W | 3,100 W |
| Heat pump rated power | 385 W | 385 W | 385 W |
| Energy rating | Grade 1 (A+) | Grade 1 (A+) | Grade 1 (A+) |
| Electric element rated power | 2,500 W | 2,500 W | 2,500 W |
| Tank working pressure | 0.8 MPa | 0.8 MPa | 0.8 MPa |
| Weight | 95 kg | 110 kg | 129 kg |
| Refrigerant | R290 | R290 | R290 |
| Product size (mm) | Ø650 × 1440 | Ø650 × 1650 | Ø650 × 1850 |
| Noise level | 40 dB(A) | 40 dB(A) | 40 dB(A) |
Specifications are from the manufacturer's brochure and may change without notice. Please confirm with our engineers before ordering.
Where it is used
- Houses and condominiums
- Indoor store rooms where air can be ducted in and out
- Families of 3 to 5 people
European Model price and quotation
Prices depend on the size, installation and site conditions, so we quote each project individually. Tell us how many people or rooms you need hot water for, and our engineers will recommend the right model and send you a free quotation.
