Overview

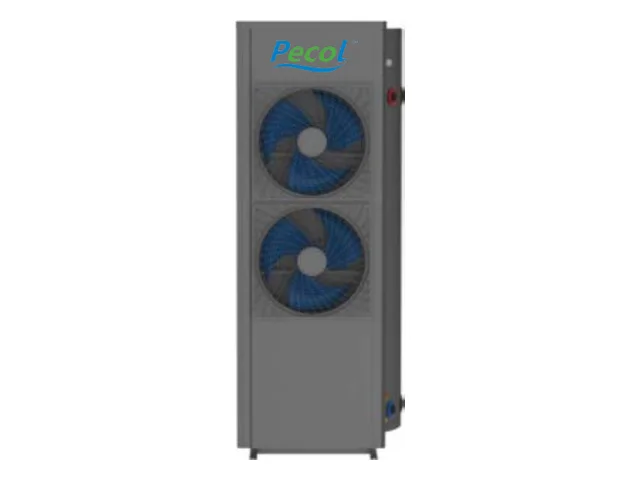

Twin-fan large-capacity all-in-one heat pump in a dark grey cabinet. The AHP118BW Series is part of Pecol's Domestic All-in-One Heat Pump range (all-in-one heat pump water heaters). Size range: 350 L / 420 L.
Models: AHP118BW
All details on this page come from the Pecol domestic heat pump brochure. Download the Domestic heat pump brochure (PDF) for drawings and installation notes.
Key features
Large heating capacity
Large water storage with efficient, rapid heating, more suitable for large families.
Sustained suction
Double fan design keeps air speed and pressure steady to meet the needs of a large-capacity air source heat pump.
Silent operation
Sealed cabin with sound insulation board and an optimised noise-reduction design.
Durable
Dedicated brand compressor, high efficiency and long life, with a 6-year warranty.
Technical specifications
| Parameter | 350 L | 420 L |
|---|---|---|
| Rated voltage / frequency | 220V~/50Hz | 220V~/50Hz |
| Rated heating capacity | 5,300 W | 5,300 W |
| Rated input power | 1,300 W | 1,300 W |
| Electric element rated power | 2,500 W | 2,500 W |
| Max. input power | 5,000 W | 5,000 W |
| COP | 4.05 | 4.05 |
| Max. input current | 23 A | 23 A |
| Inlet / outlet | G1" | G1" |
| Rated water pressure | 0.8 MPa | 0.8 MPa |
| Refrigerant | R134a | R134a |
| Overall size (mm) | 675 × 937 × 1720 | 675 × 1006 × 1720 |
| Noise level | 45 dB(A) | 45 dB(A) |
Specifications are from the manufacturer's brochure and may change without notice. Please confirm with our engineers before ordering.
Where it is used
- Bungalows and large semi-detached houses
- Families of 6 or more people
- Small hotels, homestays and hostels
AHP118BW Series price and quotation
Prices depend on the size, installation and site conditions, so we quote each project individually. Tell us how many people or rooms you need hot water for, and our engineers will recommend the right model and send you a free quotation.
